Modular gearbox system

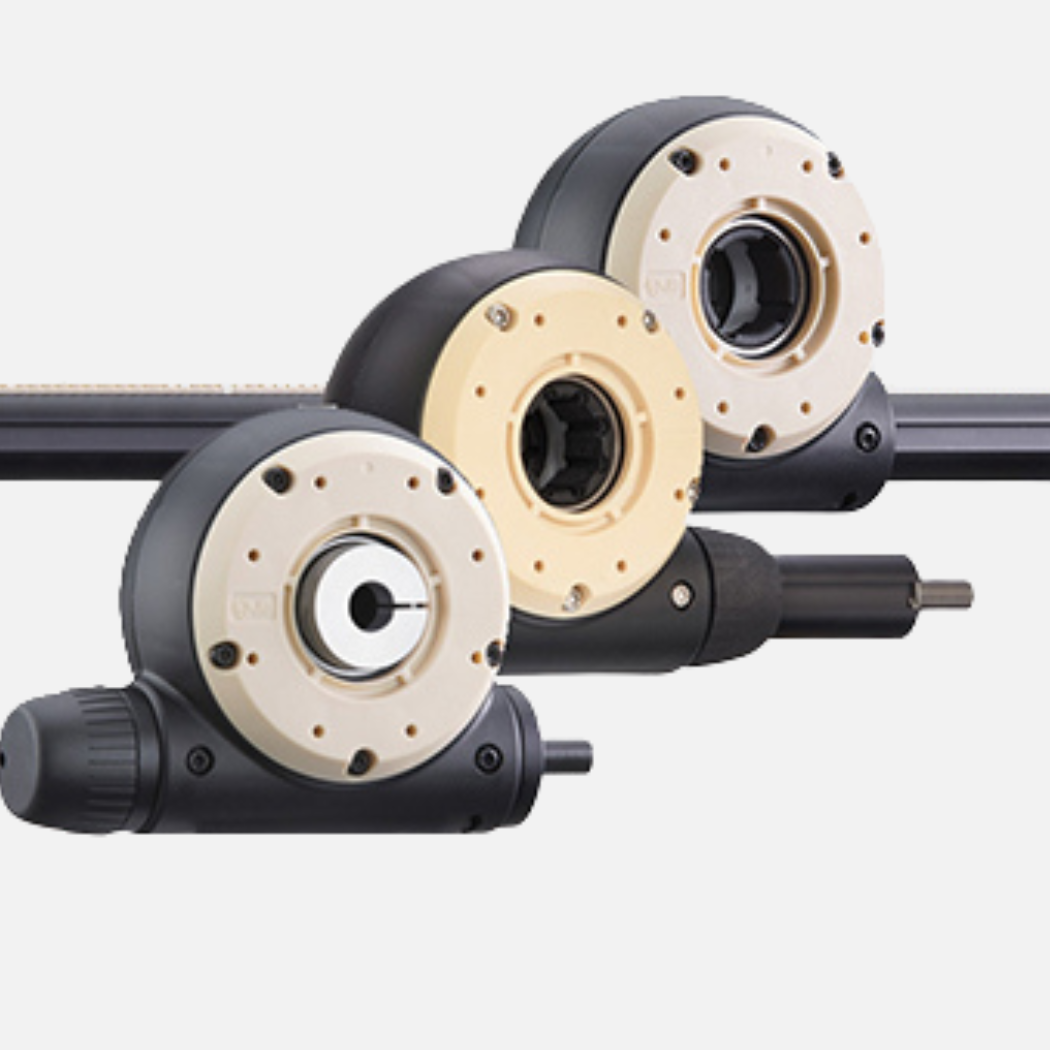

drygear® Apiro riduttore con giunto
- Ingranaggio a vite senza fine in materiali tribologicamente ottimizzati
- Azionamento manuale o motorizzato
- I moduli possono essere collegati in serie o in parallelo
- Kit INI disponibili per tutte le configurazioni
- 85%, senza condensa
- Temperature applicative: da +5°C a +50°C
- Idoneo ad applicazioni con spruzzi di acqua
- Disponibili giunti di collegamento
- Leggeri
- Esente da lubrificazione
- Bassi giochi
drygear® Apiro gearbox for connecting drylin axes
Apiro® worm gear with coupling for connection to linear axes. Especially useful for synchronising multiple linear axes through one drive.
Product information
- Available transmissions: 4:1, 8:1, 32:1, 64:1
- Output torque: 2.5Nm
- Output: coupling for drylin® linear axes
- Drive: drive pin/hand wheel
In addition to the gearbox, an adapter plate is required for installing the gearbox on the linear axis.
drygear® Apiro | Rinvio per viti dryspin®
- Collegamento semplice e diretto alle viti dryspin
- Opzioni disponibili: DS10x25, DS12x5 and TR16x2
- Riduttori dai costi vantaggiosi in polimero
- Design modulare per regolazioni manuali e motorizzate
- Possibilità di riconversione funzionale
- Assemblaggio senza utensili
drygear® Apiro riduttore con piastra rotante
- Ingranaggio a vite senza fine in materiali tribologicamente ottimizzati
- Azionamento manuale o motorizzato
- I moduli possono essere collegati in serie o in parallelo
- Kit INI disponibili per tutte le configurazioni
- 85%, senza condensa
- Temperature applicative: da +5°C a +50°C
- Idoneo ad applicazioni con spruzzi di acqua
- Disponibili giunti di collegamento
- Leggeri
- Esente da lubrificazione
- Bassi giochi
drygear® Apiro | Gearbox with double-sided rotary disc
Product information
- Available transmissions: 4:1, 8:1, 32:1, 64:1
- Output torque: 2.5Nm
- Output: double-sided rotary disc
- Drive: drive pin/hand wheel
- INI kit available
The Apiro® modular gearbox system includes a wide selection of optional accessories.
drygear® Apiro riduttore con codolo di comando
- Ingranaggio a vite senza fine in materiali tribologicamente ottimizzati
- Azionamento manuale o motorizzato
- I moduli possono essere collegati in serie o in parallelo
- Kit INI disponibili per tutte le configurazioni
- 85%, senza condensa
- Temperature applicative: da +5°C a +50°C
- Idoneo ad applicazioni con spruzzi di acqua
- Disponibili giunti di collegamento
- Leggeri
- Esente da lubrificazione
- Bassi giochi
drygear® Apiro gearbox with manual clamp, position indicator and hand wheel
Product information
- Available transmissions: 4:1, 8:1, 32:1, 64:1
- Output torque: 2.5Nm
- Output: coupling for 8mm shaft diameter
- Drive: manual clamp, position indicator and hand wheel
The Apiro® modular gearbox system includes a wide selection of optional accessories.
Couplings for other shaft diameters (up to 12mm) are available upon request.
drygear® Apiro | Modular Gearbox
General Properties:
- Dry operation thanks to tribologically optimised polymers
- max. dynamic load of 250N
- max. speed of 5mm/sec.
- Stroke per rotation: 0.5mm/rotation
- Stroke: 100mm
- Stroke configurable from 10-250mm on request
drygear® Apiro riduttore con blocco manuale e indicatore di posizione
•Regolazione manuale e installazione di un riduttore completo ...
•Accessori orientabili in quattro posizioni: 0°, 90°, 180°, 270°
•Su richiesta anche: 3:1, 5:1, 8:1, 16:1
drygear® Apiro rack and pinion gearbox with coupling
Product information
- Flexible strokes starting at 60mm
- Max. axial load of 50N
- Flexible connection of drive shafts possible
- Manual or motorised drive possible
More advantages
- Easy synchronisation with Apiro® modular gearbox system
- INI kit available for all options
drygear® Apiro® cantilever axis with double axis
Apiro® linear gearbox for converting rotational motion into axial motion – the double version for pusher tasks on both sides.
Product information
- Flexible strokes starting at 60mm
- Typically driven with an Apiro® worm gear
- Manual or motorised drive possible
More advantages
- Easy synchronisation with Apiro® modular gearbox system
- INI kit available for all options
The specified stroke is the stroke for each side.
drygear® Apiro rack and pinion gearbox with planetary gearbox
Product information
- Flexible strokes starting at 60mm
- Max. axial load of 25N (with a NEMA17 motor)
- Can be driven directly with a NEMA17 motor
More advantages
- INI kit available for all options
Note: the cantilever axis can only be used in conjunction with a suitable motor kit.
drygear® Apiro asse a sbalzo
- Azionamento manuale o motorizzato
- I moduli possono essere collegati in serie o in parallelo
- Kit INI disponibile per tutte le opzioni
- Temperatura operativa: da +5 °C a +50 °C

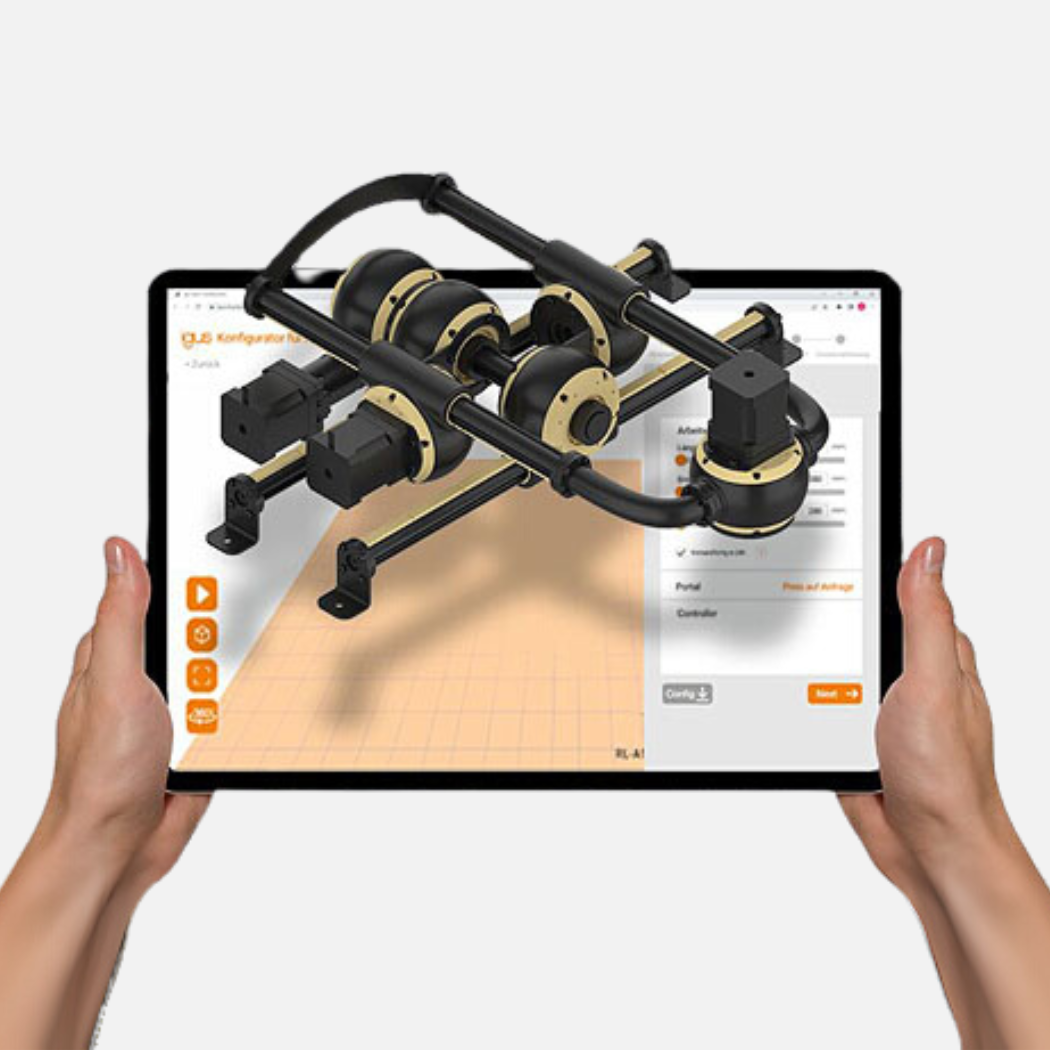

Apiro® robotics kit
Robotics kit of the Apiro® modular gearbox system for educational institutions
Build your own robot, including instructions.The following assemblies can be built:
- Apiro® room linear robot
- Apiro® flat linear robot
- Apiro® mini articulated robot
- Apiro® pusher
- Apiro® 2-axis picker
- Apiro® 3-axis picker
- Apiro® 360° picker
- Apiro® SCARA
Apiro® bevel gear 1:1 for connection to a linear axis
drygear® Apiro® bevel gear
Product information
- Available transmission: 1:1
- Output: hollow shaft for connection to drylin linear axes
- Drive: drive pin/hand wheel
Optionally available
- Large selection of accessories
Apiro bevel gear 1:1
drygear® Apiro® bevel gear
Product information
- Available transmission: 1:1
- Output: machined end
- Drive: drive pin/hand wheel
Optionally available
- Large selection of accessories
drygear® Apiro motor kit DC motor
- Torque: 0.1Nm to 1.8Nm
- Operating voltage: 12VDC and 24VDC
- Speed: up to 440rpm
- Motor connection: low-profile connector
- Protection class: IP30
- Direct battery operation possible
Price without gearbox
drygear® Apiro stepper motor
- Motor sizes available: NEMA17, NEMA23
- Available designs: stranded wire, connector, encoder
- Holding torque NEMA17: 0.5Nm
- Holding torque NEMA23: 2.0Nm
Price for the motor kit only; gearbox not included.
For motor specifications, see the data sheet in the Downloads area.
iglidur® Gears
The gears made of tribologically optimised iglidur® high-performance polymers impress with their significantly higher service life than gears made of comparable plastics.
Due to fine-tuned additives of reinforcement materials and solid lubricants, they do not require additional lubrication.
In the industry's largest test laboratory, the gears made of iglidur® materials are thoroughly tested to continuously improve their service life.
